Industrial Pi

Make development easier. Realize ideas faster.

GHF51-Banner-new_工作區域 1

Connect Innovation and The Real World

DFI exclusive Industrial Pi Series is powered by high-performance x86 platforms such as Intel and AMD. The robust power makes AI vision deployments downsized, more flexible, and reliable for long-term applications. With life cycle support of up to 15 years and Ubuntu-certified service for the over-the-air software update, the Industrial Pi Series perfectly closes the gap between prototype and mass production, bringing unlimited potential and innovation for face recognition, traffic flow analysis and robotic arm solutions applied in industrial automation as well as smart city.

unboxed-logosclassicblue-onecolordigital-unboxed-classicblue-1clogo-classicblue-3000px
1731000-K_Embedded_Solutions_Logo_E_RGB
ubuntu_logo-1

icon-for-new-9

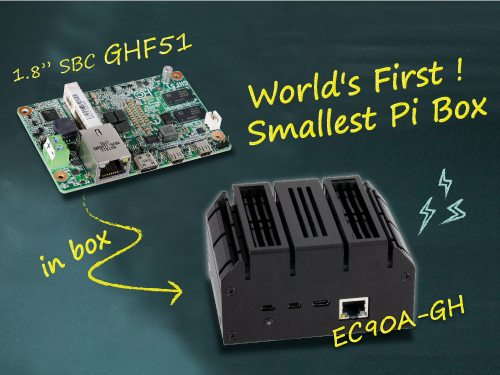

  World’s First: Smallest Ryzen™ Pi Box

EC90A-GH - Ever easier for development and installation

Status: Sample Available

Powered by the small fighter GHF51, the EC90A is the first AMD Ryzen™ Pi box in the world. The stylish, compact chassis and fanless design of EC90A-GH not only solve the heat dissipation and vibration issues that the bare board GHF51 may cause, but more importantly, allow users to deploy it more intuitively and easily. More conveniently, a SIM card can be installed in 30 seconds by simply opening the bottom cover. With the user-friendly design, system integrators can leverage the EC90A-GH to build applications, like mini kiosk, outdoor high-res slim type kiosk, arcade, and animation gaming, under a great level of developing time optimization.

Pi + Pi Box -500x375-210610
Landing_page-GHF51-fv_2

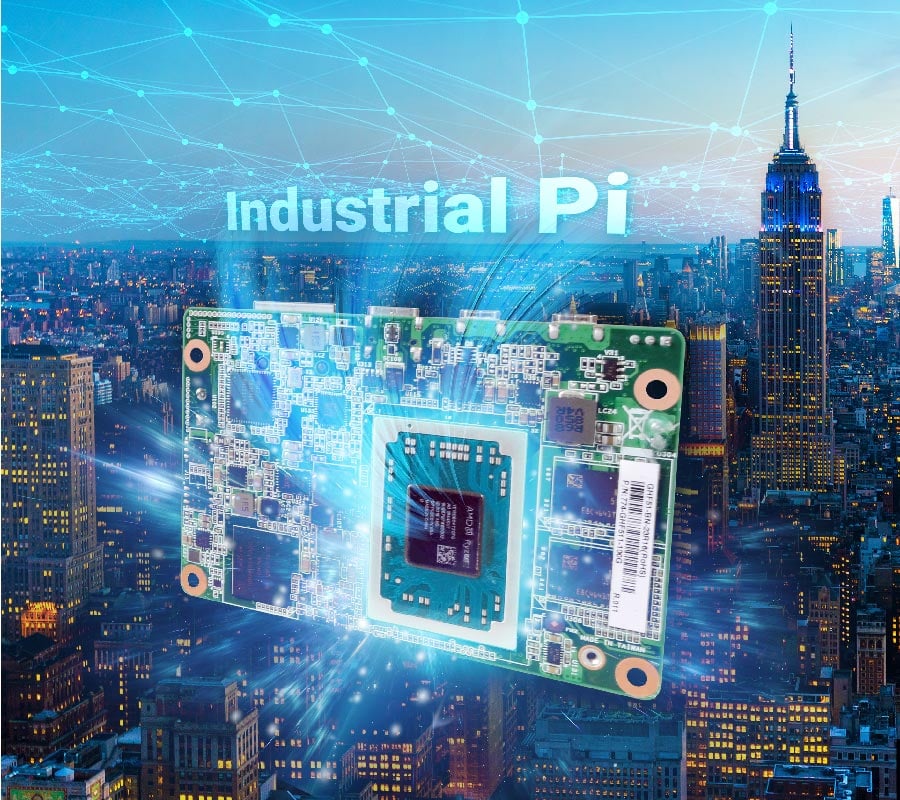

World’s First: 1.8" Board with AMD Ryzen™

GHF51 to subvert your vision of Edge

Status: In Stock

DFI’s GHF51 is the first in the world 1.8” industrial motherboard powered by high-performance AMD Ryzen™ R1000 Processors, holding an unprecedented processing throughput despite its mini size. It ascends from the industrial Pi and defines a new level of balance between performance and cost-effectiveness. Its flexible expandability brings versatility perfect for industrial application development, edge computing, AI vision, and more.

Why Industrial Pi?





Industrial Pi: GHF51

Consumer Pi

  SoC

AMD R1000

R1606G/ R1505G/ R1305G/ R1102G

Dual Core, up to 3.5GHz

Broadcom 2711

1.5GHz, 4C A72

  Memory

up to 4/8GB

Up to 2/4/8GB LPDDR4

  Storage

up to 64GB eMMC 5.0 / pSLC

32GB default

Micro SD

  Video/ Audio

2 x Micro HDMI

3.5 mm jack; 2 x Micro HDMI

  GbE

 1

  Mini PCIe

1 N/A

  Power

12V DC-in

5V DC-in

  Operating Temp.

Up to 0~60°C / -20~70°C

0~50°C

  OS

Windows 10, Ubuntu (Certified)

Linux

  Life support

10 years

6 years

  Revision Control

Yes

No



Landing_page-GHF51-fv_1-1

Ultra-small SBC to Give and Endure

The Pi-sized, industrial-class, ultra-small SBC, once powered on, will unleash exceptional performance from the all-in-one, up to 2x CPU core / 3x GPU CU integrated processors. With proprietary cooling architectures and fanless design, the heat from the processor spreads faster and efficiently, ensuring overall stability and continuity. The seamless collaboration between AMD processors and DFI’s SBC cooling technology sheds light on the path to edge computing.

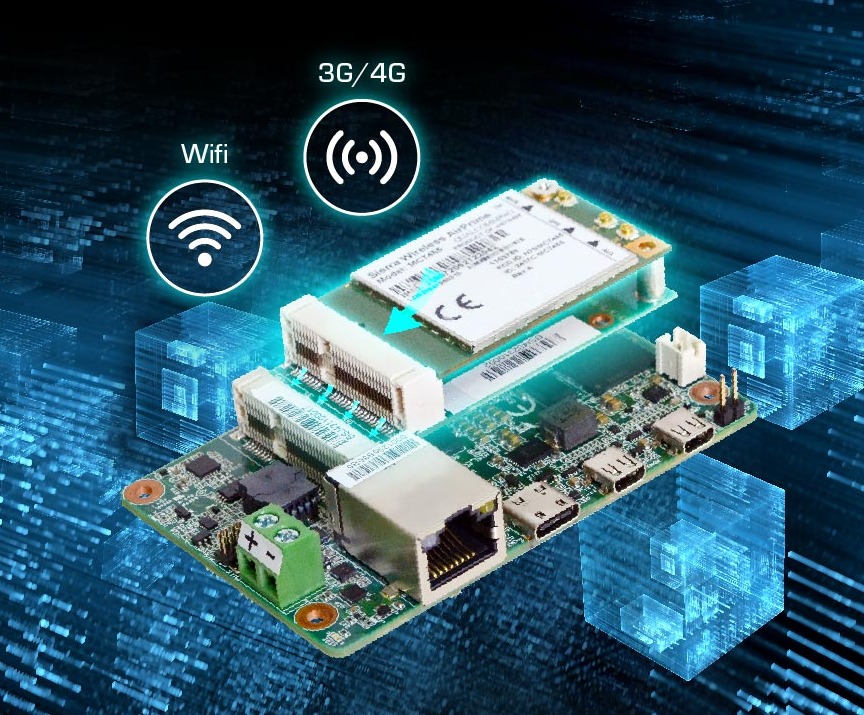

Dare to Define More

Small footprint doesn't necessarily sacrifice expandability. GHF51, while taking up so little space and power, still provides multiple I/O — dual HDMI display, USB 3.1, and Mini PCIe for 3G/4G/Wifi cards. Its flexibility and versatility pack IoT and edge computing right into your business.

Landing_page-GHF51-fv_4-1
工作區域 2_1-2

Prototyping = Producing

Small board has a big world. It creates and fulfills various space-constrained applications, so development SBCs become the favorite for prototyping, but are simultaneously an obstacle for mass production. Now, DFI, starting from ODM/OEM business, offers professional BIOS/OS/firmware/software tuning services on industrial SBCs for a ready-for-production prototype design, easily unlocking the producing restriction while giving deterministic performance to the end product.

Ubuntu-Certified: Seamless SW Update

Certified by Ubuntu, DFI industrial Pi and Pi box are ready as IoT hardware for the over-the-air software update. The online update mechanism of and the authorized DFI online application store combines with DFI’s products' application flexibility, to reduce software and hardware development time to deploy new services.

  Proof of Concept of Ubuntu-certified HW applications:

  • IoT Gateway
  • Container Applications
  • Micro Cluster
  • Fail-Safe
Learn More
Canonical-PR-1-800x600-210224
Landing_page-GHF51-fv-ipad_6

Long-term Promise

Focusing on industrial solutions, DFI, following AMD long-lifecycle support roadmap for CPU, provides product availability up to 10 years. This support promises system upgrade in a long term without concern for compatibility.

Request GHF51 Sample

Application Stories of GHF51

GHF51-Traffic Surveillance

Realize Long-Term Durability and Seamless Highway Vehicle Surveillance

Learn More
GHF51-Facial Recognition

Create More Value in Facial Recognition Applications

Learn More

How Others Feel about Industrial Pi

DFI Ryzen Pi GHF51 - Performance Review

DFI Ryzen Pi GHF51 - Install Ubuntu and OpenCV

Create Your Story with Industrial Pi

GHF51

Status: In Stock

  • World's FIrst industrial Pi with AMD Ryzen™
  • AMD Ryzen™ Embedded R1000 Series
  • Memory: 4GB/8GB DDR4 onboard
  • Storage: 16GB/32GB/64GB eMMC
  • Expansion: 1 Mini PCIe
  • Rich I/O: 1 LAN, 1 USB 3.1 Gen 2, 2 Micro HDMI
  • 10-Year CPU Life Cycle Support Until Q1' 30
View Specification

ALF51

Status: In Stock

  • Intel Atom® Processor E3900
  • Memory: 2GB/4GB LPDDR4 onboard
  • Storage: 16GB/32GB/64GB eMMC
  • Rich I/O: 2 LAN, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 31
View Specification

AL05P

Status: In Stock

  • Intel Atom® Processor E3900
  • Memory: 2GB/4GB LPDDR4 onboard
  • Power: PoE PD 48VDC
  • Expansion and Storage: 1 Mini PCIe, 1 SMBus, 1 eMMC
  • Rich I/O: 1 LAN, 1 COM, 2 USB 3.0, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 31
View Specification

EC90A-GH

Powered by GHF51

Status:Sample Available

  • AMD Ryzen™ Embedded R1000
  • Memory: 4GB/8GB
  • Expansion: 2 COM or LTE or WiFi
  • User-friendly design for SIM card installation
  • Rich I/O: 1 LAN, 1 USB 3.1 Gen 2, 2 Micro HDMI
  • 10-Year CPU Life Cycle Support Until Q1' 30
View Specification

EC90A-AL

Powered by ALF51

Status: In Stock

  • Intel Atom® Processor E3900
  • Memory: 2GB/4GB LPDDR4 onboard
  • Expansion: 1 Mini PCIe
  • Rich I/O: 2 LAN, 1 COM, 3 USB
  • Mini-DP++ resolution
  • Wide temp: -20 to 60°C
  • 15-Year CPU Life Cycle Support Until Q4' 31
View Specification

More flexible and adaptive.

Make your solution smaller Now!

Request Sample
Custom Request
AL05P-Desktop03-201228
